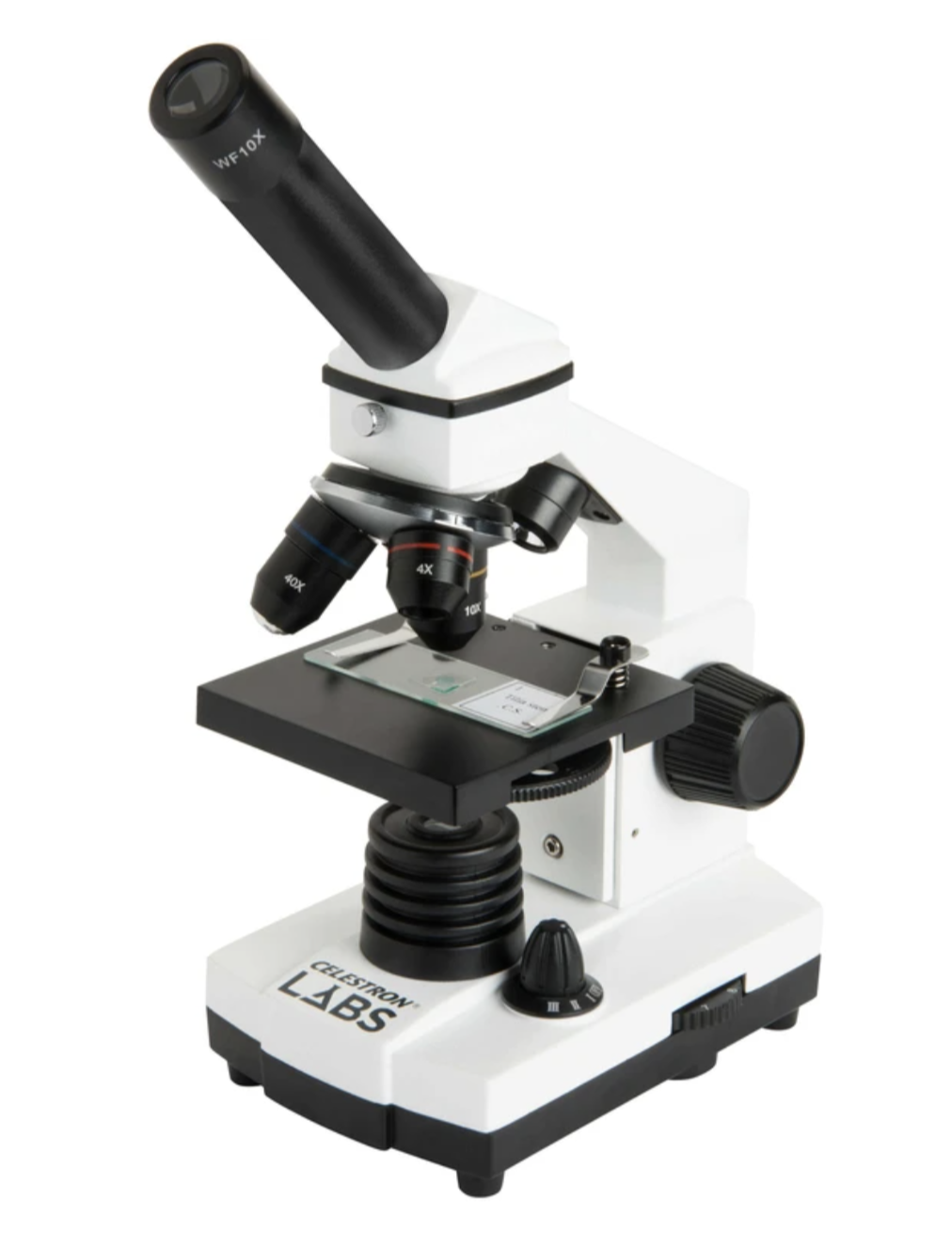

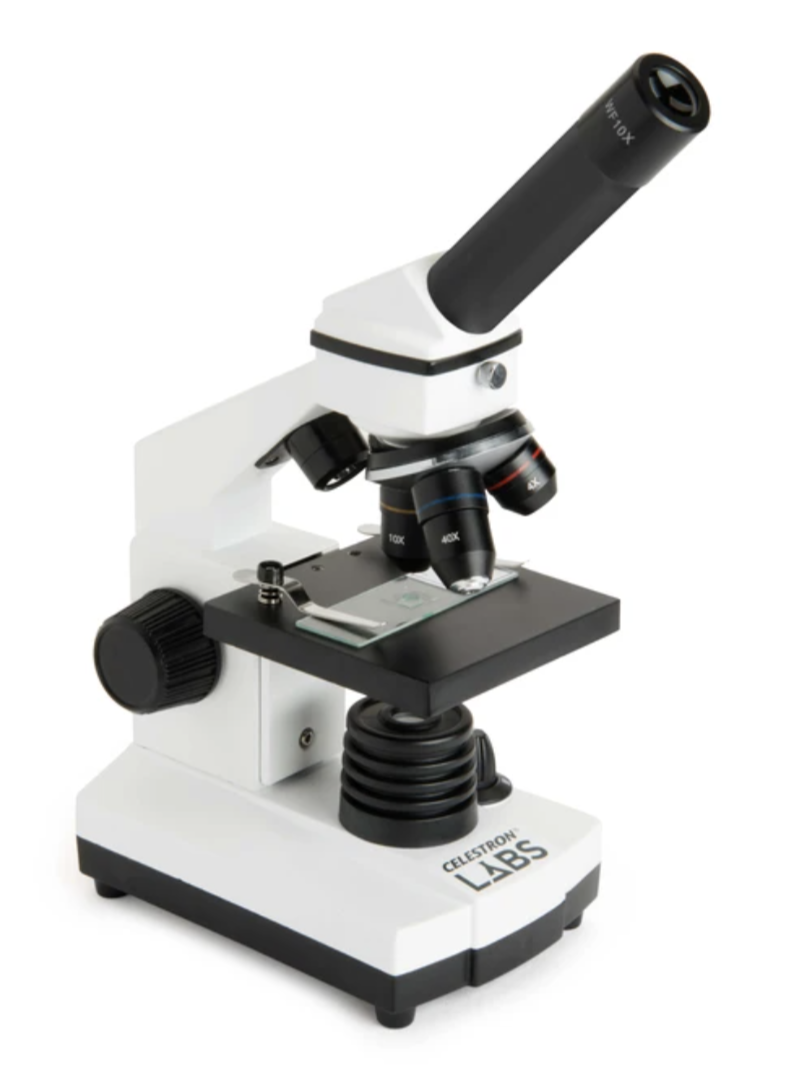

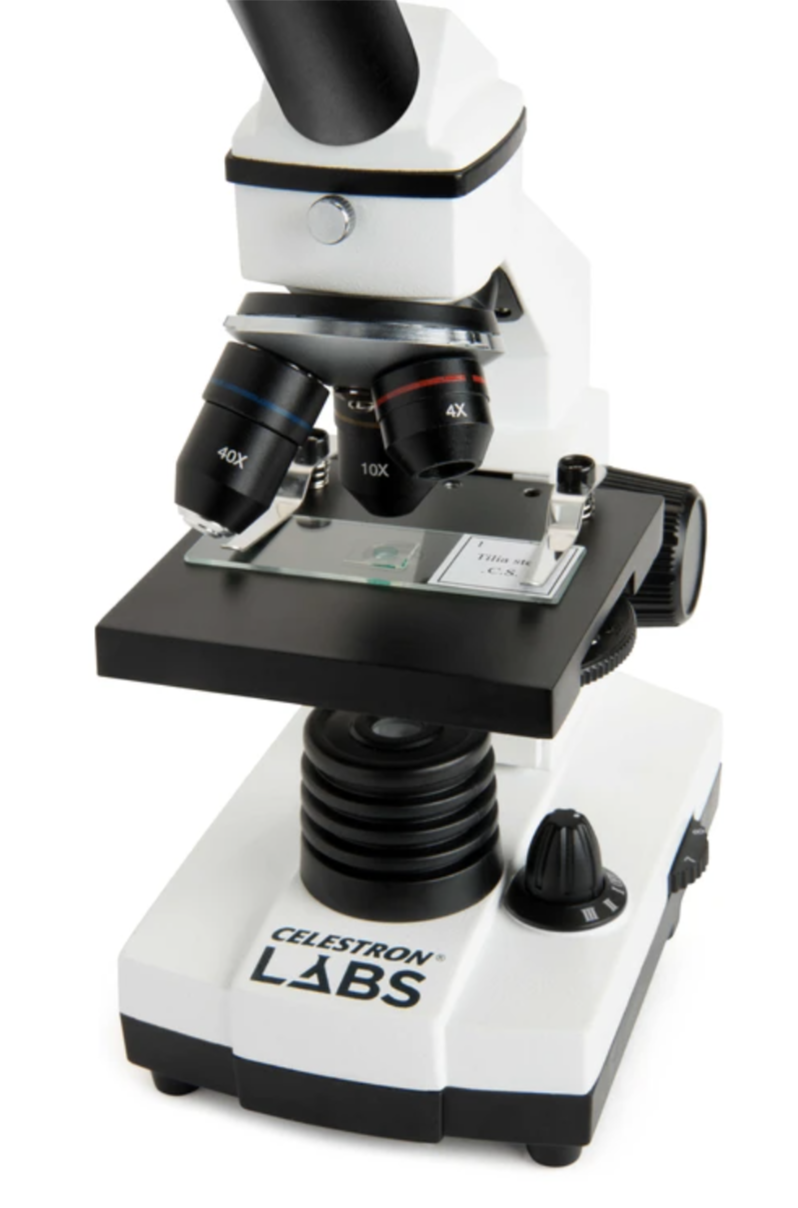

Celestron Compound Microscope Labs CM800

Type of Microscope

Compound

Head

Monocular with 45° incline

Eyepiece(s) Magnification

(1) WF 10x, (1) WF 20x

Eyepiece(s) Diameter

23.2 mm (.91")

Nosepiece

triple, rotational

Objective(s) Type

Refractive

Objective(s) Standard

JIS

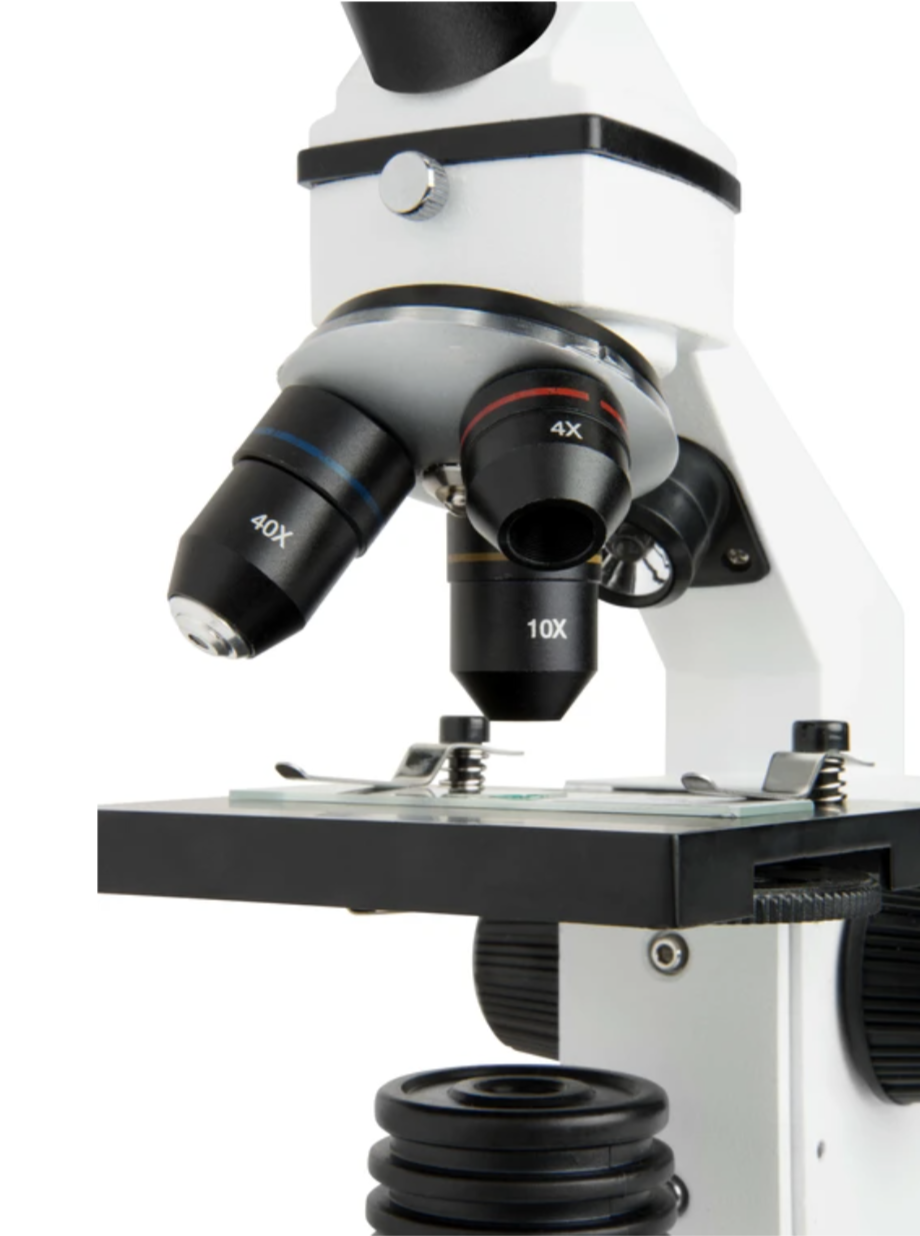

Objective(s) Magnification

(3) 4x/10x/40x, all achromatic

Objective(s) Thread

WJ3/5"-1/40"

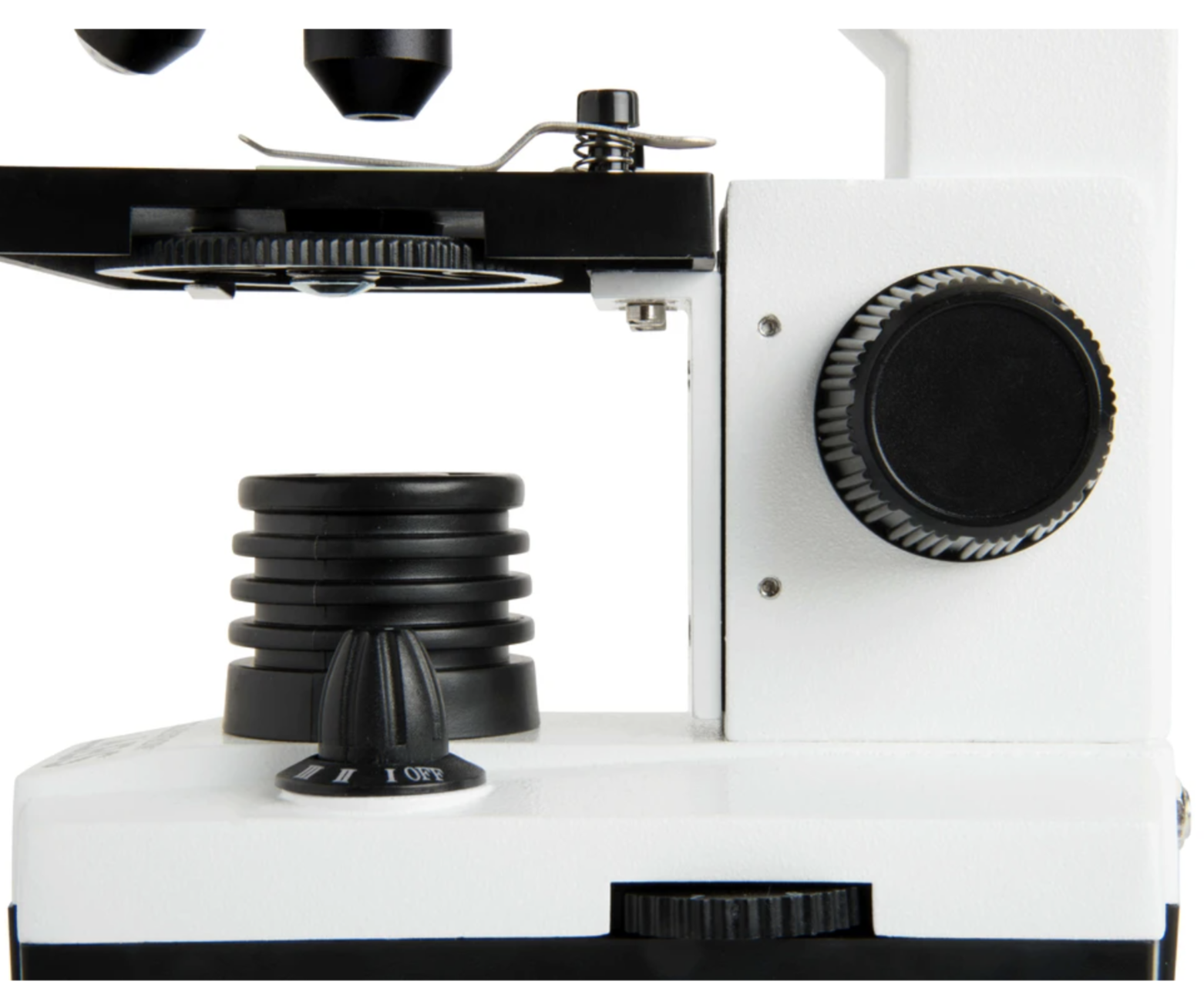

Focus Type(s)

Rack & pinion, coarse focus only

Focus Travel (per rotation)

8 mm (.31")

Magnification Range

40x to 800x (40x, 80x, 100x, 200x, 400x, 800x)

Illumination Type

LED

Illumination Position(s)

Lower and upper

Illumination Adjustability Mechanism

Dial, both upper and lower offer adjustable intensity

Power Source

AC Adapter- 100-240V

Battery Option

(3) AA (Included)

Stage

Plain stage with metal clips (88 mm x 88 mm or 3.46" x 3.46")

Condenser Type

None

Condenser N.A.

0.65

Stage Diaphragm

Simple, rotating disc with six aperture sizes

Included Accessories

10 Prepared Slides
