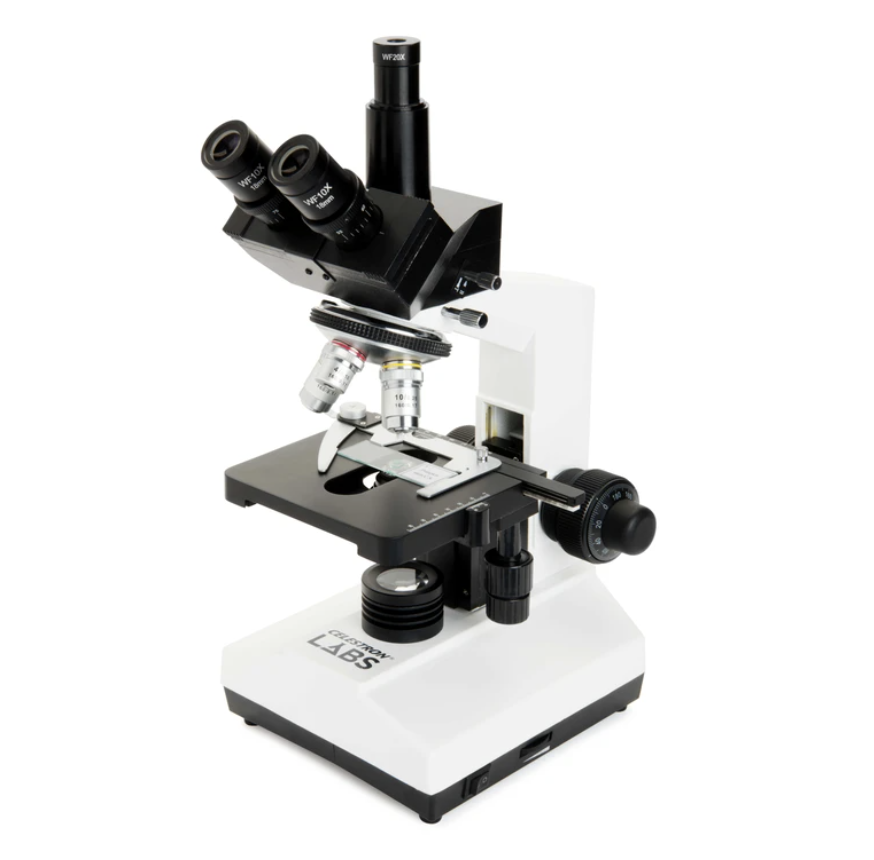

Type of Microscope |
Compound Trinocular |
Head |
Trinocular with 360° rotatable 45° incline and interpipilary distance adjustability |
Eyepiece(s) Magnification |
(1) 10x and (1) 20x (10x with pointer) |
Eyepiece(s) Diameter |
23.2 mm (.91") |
Nosepiece |
quadruple, rotational |
Objective(s) Type |
Refractive |
Objective(s) Standard |
DIN |
Objective(s) Magnification |
(4) 4x, 10x, 40x, 100x immersion, all achromatic |
Objective(s) Thread |
4/5" x 1/36" |

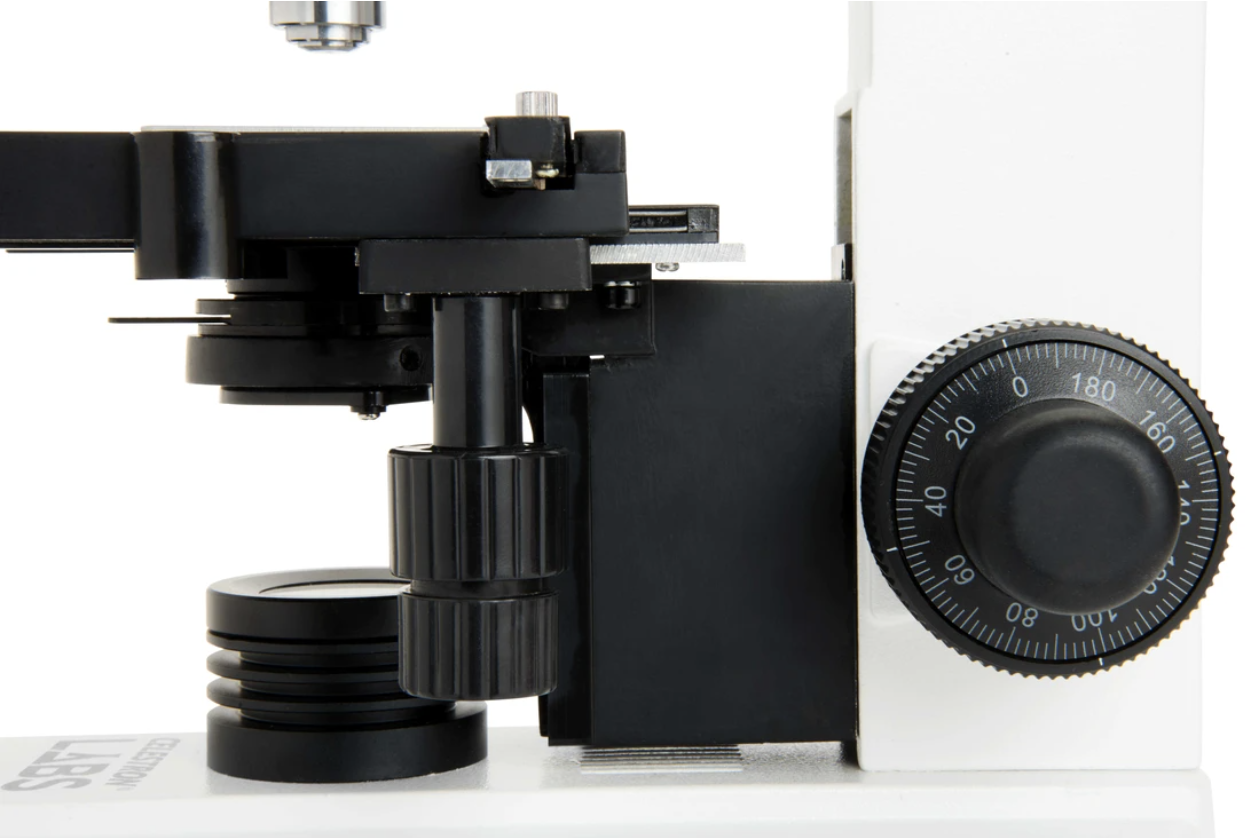

Focus Type(s) |
Coaxial coarse and fine focus (individual dials) |
Focus Travel (per rotation) |
0.2 mm (.0078") |
Magnification Range |
40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
Illumination Type |
44132: Halogen | 44232: LED |
Illumination Position(s) |
Lower |
Illumination Adjustability Mechanism |
Dial |
Power Source |
AC Adapter- 100-240V |
Battery Option |
6V/0.5W |
Stage |
Mechanical stage, 140 mm x 140 mm (5.5" x 5.5") |
Condenser Type |
Abbe with Iris adjustment |
Condenser N.A. |
1.25 |
Stage Diaphragm |
N/A |
Included Accessories |
Trinocular adapter tube, 10 prepared slides, 3 color filters (blue, white opaque, green), immersion oil |
