ZWO ASI183MC Pro (color)

Camera technical details

Sensor: 1″ CMOS IMX183CLK-J/CQJ-J
Diagonal: 15.9mm
Resolution: 20Mega Pixels 5496*3672
Pixel Size: 2.4μm
Bayer Pattern: RGGB
Shutter:Rolling shutter
Exposure Range: 32µs-2000s
ROI: Supported

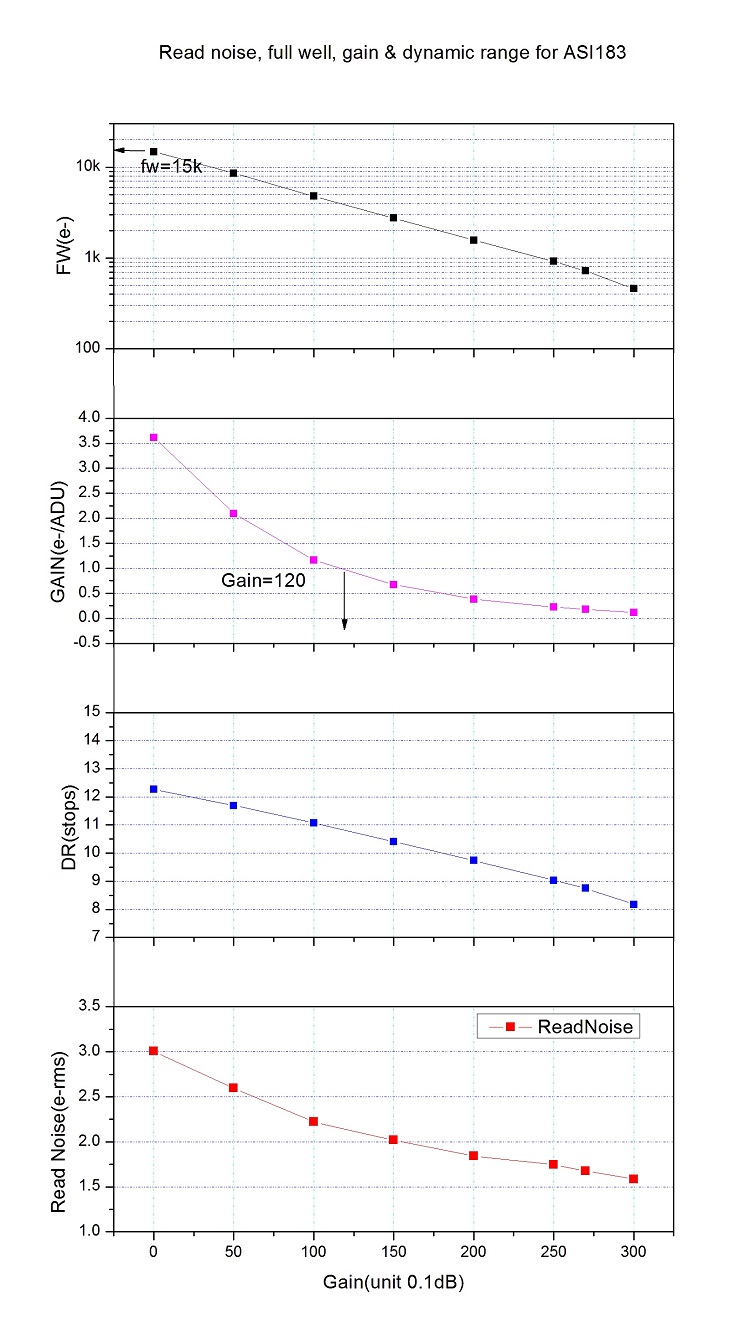

Read Noise: 1.5-3.0e

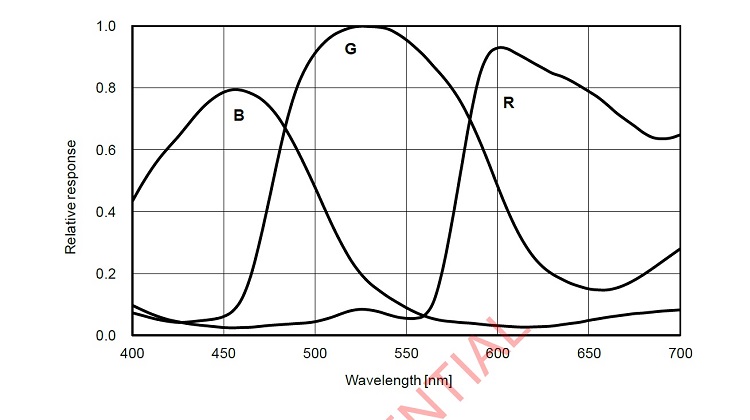

QE peak: 84%
Full well: 15ke
ADC:12bit
DDRIII Buffer: 256MB
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
Interface: USB3.0/USB2.0
Adaptor: M42X0.75
Protect window: D32-2-AR

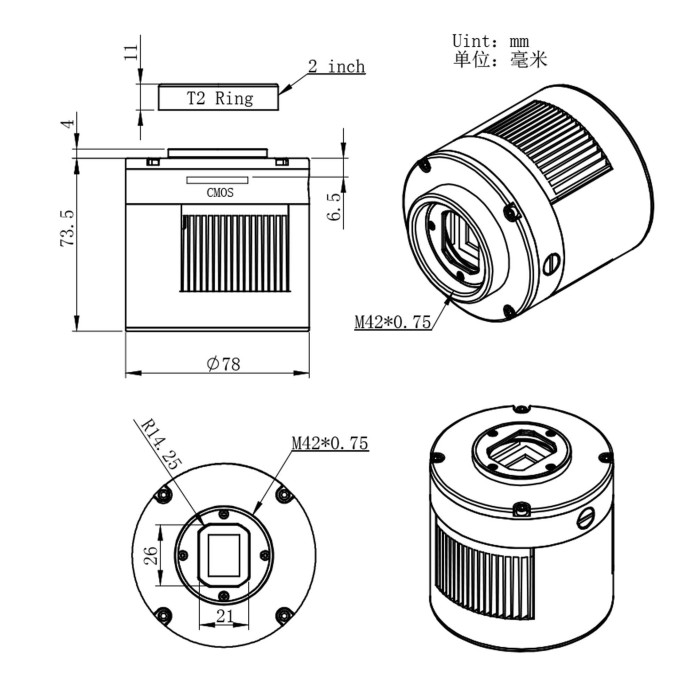

Dimensions: 78mm Diameter
Weight: 410g
Back Focus Distance: 6.5mm
Cooling: Regulated Two Stage TEC
Delta T: 40°C-45°C below ambient
Camera Power consumption: 650mA at 5V
Cooler Power consumption: 12V at 3A Max
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%
Max FPS at full resolution:
10Bit ADC
5496×3672 19fps
3840×2160 41.04fps
1920×1080 80.10fps
1280×720 117.30fps
640×480 169.92fps
320×240 308.17fps
12bit ADC
5496×3672 19fps
3840×2160 36.12fps
1920×1080 70.48fps
1280×720 103.23fps
640×480 149.53fps
320×240 271.19fps
more resolutions are in software, support customize resolution.
