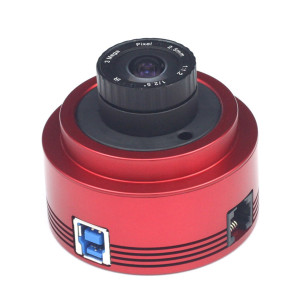

ZWO ASI178MC (color)

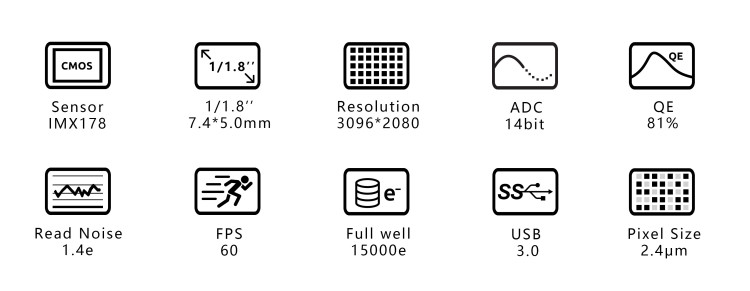

Camera technical details

Sensor: 1/1.8” CMOS IMX178
Resolution: 6.4 Mega Pixels 3096*2080
Pixel Size: 2.4µm
Sensor Size: 7.4mm*5mm
Diagonal: 8.92mm
Exposure Range: 32µs-1000s
ROI: Supported
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
ST4 Guider Port: Yes
Focus Distance to Sensor: 12.5mm
Shutter Type: Rolling Shutter
Protect window: IR-CUT window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit rate: 14bit output(14bit ADC)
Adaptor: 2″ / 1.25″ / M42X0.75
Dimension: φ62mm X 36mm
Weight: 120g or 4.2 ounces (without lens)
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%

Supported resolution

10bit ADC/14bit ADC
3096×2080 60fps / 30fps
USB3.0
2560×2048 62fps / 31fps
2048×1080 116fps / 58fps
1280×960 130fps / 65fps
800×600 204.7fps / 102.3fps
640×480 253.1fps / 126.5fps
320×240 479.7fps / 239.8fps

USB2.0
3096×2080 6fps
2560×2048 8fps
2048×1080 19fps
1280×960 34fps
800×600 89.5fps
640×480 139.9fps
320×240 479.7fps
More resolutions can be defined by user
